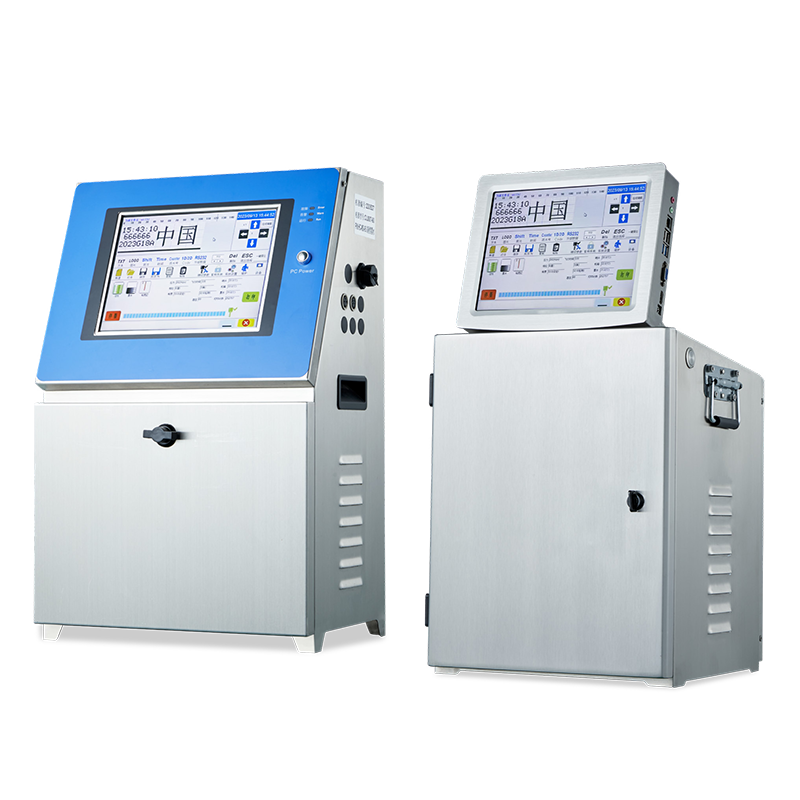

Inkjet Coder
Easy-maintainable Inkjet Coder
Intel：Provide users with a stable and environmentally friendly operating experience.
Windows：Meet various font needs, customize patterns and font libraries to simplify complexity.
Independent power supply design：The equipment has a more stable power supply, lower maintenance costs, and smoother system operation.
Self developed Fourier function charging algorithm：Make ink droplet charging more accurate, meet the high-definition requirements of various barcodes, QR codes, and DM codes, and achieve higher reading rates and faster speeds.
Independently deploy and operate the monitor：Users can freely switch the operation panel for convenient operation.
Remote control：Breaking through the bottleneck of difficult after-sales maintenance, users only need to control the inkjet printer through WIFI.
Automatic sealing nozzle：Not only does it save consumables and power on/off time, avoid blockages, and reduce failure rates, but it can also achieve unmanned operation and has the ability to upgrade Industry 4.0 unmanned workshops at any time.
Support multiple external devices：
· Can be connected to external keyboards, mice, and monitors, and can be connected to various external devices through USB interfaces.
· Real time and precise control of phase shift detection, charging, pressure, temperature, and viscosity to ensure stable printing for longer periods of time.
· The ink system and nozzle have been innovatively designed to accommodate inks of different properties.
· The controller adopts a 10.4-inch touch screen industrial computer, with a visual graphic menu and a wide variety of editable fonts to meet the needs of various customers.
· A powerful control system that can control databases, barcode guns, IC card readers, weighing devices, random codes (10 base, 16 base, up to 34 base), variable QR codes and barcodes, and adapt to XYZ mobile platform printing according to customer requirements.
Inkjet Coder Product Parameters
| Nozzle | Nozzle sealing technology | V |
| Nozzle size | 40、50、60、70micron | |
| Nozzle diameter | 45mm | |
| Nozzle length | 245.8/249mm | |
| Throat length | Standard 3m, optional 6m | |
| Throat diameter | 20mm | |
| Bending radius of throat (minimum) | 65mm | |
| Fuselage | Material | 304 stainless steel |
| Size (length X width X height) | 320mmx300mmx610mm | |
| 320mmx324mmx634mm | ||
| 368mmx256mmx566mm | ||
| Weight (without consumables) | 21kg | |
| Power requirements | 90-264VAC, 50Hz, 135W | |
| power consumption | 80W | |
| Sensor input port * 2 | V | |
| Encoder input port * 1 | V | |
| User interface USB input port * 1 | V | |
| RFID | V | |
| Ink | Ink box capacity | Standard 500ml, optional 1000ml |
| Solvent box capacity | Standard 500ml, optional 1000m | |
| Printing ability | linear velocity | Max:340m/min (5点） |
| Min:15m/min (34点） | ||
| Maximum number of coding lines | Lines 1-6 | |
| Spray printing dot matrix | 34 points | |
| Spray code height | 0.8mm-12mm (micro letter machine 0.6mm-10mm) | |
| Printing distance | Optimal distance 10mm, range 2mm-20mm |
| Spray code format | Text | Windows fonts, custom fonts |
| Pattern | BMP | |
| Barcode | Code39,Code128,Code128B | |
| QR code | QR Code,DataMatrix,PDF417 | |
| Database | TXT | |
| Shift | V | |
| Operation | User interface | 10.4-inch touch screen |
| Software | Win7 32bit 或 Win 10 32bit | |
| User friendly interface | V | |
| Single button start stop | V | |
| Consumables | Automatic consumable identification function | V |
| Intelligent liquid level sensing | V | |
| Maintain | Maintenance Mode | Ｖ |
| Fault analysis page | Ｖ | |
| environment | Operating Temperature | 5°C~45°C |
| Humidity | Relative humidity of 30% -90% without frosting | |
| Special environment (optional) | Nozzle positive pressure air pump air drying component | |
| Convenient design | Consumables addition | Drawer-type |
| Communication function universal component | USB port on the body * 1 | |
| Ethernet RJ45 port * 1 | ||
| LVDS port * 1 | ||
| RS232 communication function component | RS232 port * 1 | |
| external interface | Encoder, calculator, weighing strip, barcode scanner, IC card reader, etc |
· High quality：Can print 1 to 4 lines of barcodes and various icons.
· High speed：It can reach 480 meters per minute.
· height range：0.8-15 millimeters.
· Touch screen startup：During the startup and shutdown process, there is no need to clean the nozzle components, saving consumables.
· Touch screen operation：Full touch screen operation, display in both Chinese and English.
· Standard printing and editing functions：Can simultaneously use 3 counters, barcode, clock, date, shelf life, shift hours, symbol editing, all dot matrix (dot matrix 5X5 to 24X32), mirror, repeat printing, infinite product printing, and printing delay.
· Fully automatic printing control：By fully automatic control of all printing parameters, the system has high reliability. The objects of fully automatic control include: working pressure, ink viscosity, ink droplet decomposition (modulation), phase, flight time compensation, interval start, etc.
· Fault information display：The operation interface can directly display fault information, making troubleshooting simple and convenient.
