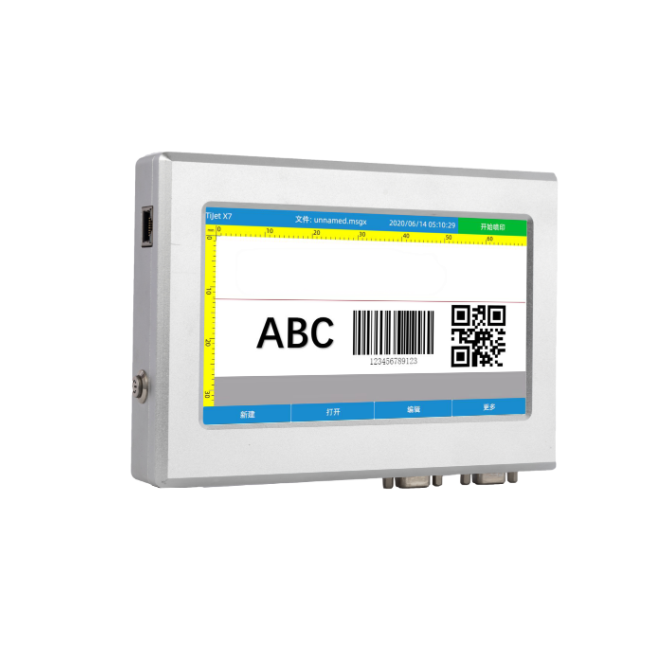

High-Resolution Inkjet Coder

Inkjet technology	HP Thermal Foam TIJ2.5
Operating system	Embedded LINUX system
Printing accuracy	Up to 600DPI
High printing height	1-50.8mm
Spray distance	2-5mm
Spray printing font	Ture Type
Number of printing lines	Any number of rows
Spray printing content	Batch number, class, serial number, text, pattern, time and date LOGO、 Counting, one-dimensional code, two-dimensional code
Printing speed	1-200m/min，The printing speed does not change with an increase in the number of lines
Printing direction	The nozzle can rotate in the forward, upward, and downward directions
Memory capacity	Large capacity storage and expandable storage space
Scope of application	Can be spray printed on surfaces such as metal, plastic, wooden boards, aluminum platinum, cardboard boxes, and building materials
Communication interface	It can be directly connected to a computer through a serial port or USB interface, making it very convenient to transfer trademark patterns and change the printing fonts in the inkjet printer font library according to your special requirements.
Applicable ink	Using fast drying ink or water-based ink, no additives, no pollution, no need for external air source or built-in air pump
Ink color	Black, white, red, blue, yellow, green UV、 invisible
Supported languages	Chinese, English, support language import
Fuselage	Aluminum
Body dimensions	198mm142mm35mm
Power parameters	AC220V(Must be effectively grounded)
Body power consumption	20w
Usage environment	Temperature 0 ° C-50 ° C Humidity 10% RH-90% RH
