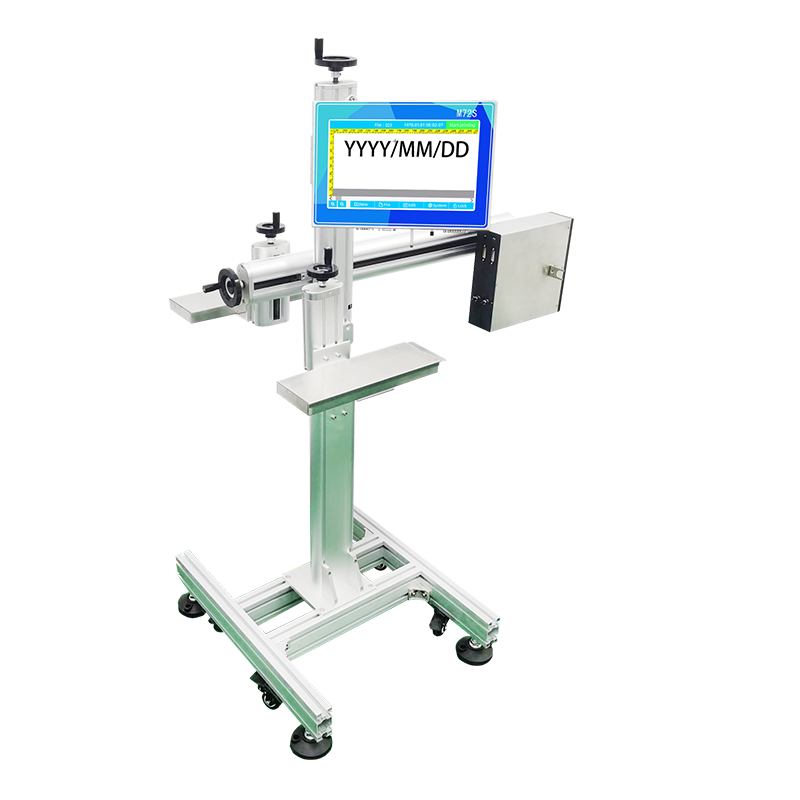

High-Resolution Inkjet Coder
10-inch Color Industrial Touchscreen
· Equipped with a heating function to meet the requirements of UV inkjet printing
· Can print information on most material surfaces
The maximum speed can reach 200m/min
· Superior spray printing function, delivering higher added value to you
· Smart cleaning technology prevents ink from drying and clogging the printhead nozzles
· Support for personalized software customization
· Excellent compatibility and easy installation, can be integrated into various production lines
High-Resolution Inkjet Coder Product Parameters
| Inkjet technology | Fully imported piezoelectric nozzle |
| Operating system | Embedded LINUX system |
| Printing accuracy | 180dpi |
| High printing height | 1-142mm |
| Spray distance | 2-15mm |
| Spray printing font | High resolution inkjet fonts (i.e. printed fonts), dot matrix fonts |
| Number of printing lines | Any number of rows |
| Information length | 1-3.8 meters |
| Spray printing content | Batch number, class, serial number, text, pattern, time and date LOGO、 Counting, one-dimensional code, two-dimensional code |
| Printing speed | 1-200m/min，The printing speed does not change with an increase in the number of lines |
| Printing direction | The nozzle can rotate in the forward, upward, and downward directions |
| Memory capacity | Large capacity storage and expandable storage space |
| Scope of application | Can be spray printed on surfaces such as metal, plastic, wooden boards, aluminum platinum, cardboard boxes, and building materials |
| Communication interface | It can be directly connected to a computer through a serial port or USB interface, making it very convenient to transfer trademark patterns and change the printing fonts in the inkjet printer font library according to your special requirements. |
| Applicable ink | Using fast drying ink or water-based ink, no additives, no pollution, no need for external air source or built-in air pump |
| Ink color | Black, White, Red |
| Supported languages | Chinese, English, support language import |
| Fuselage | 不锈钢 |
| Power parameters | AC220V (Must be effectively grounded) |
| Body power consumption | 20w |
| Usage environment | Temperature 0 ° C-50 ° C Humidity 10% RH-90% RH |
