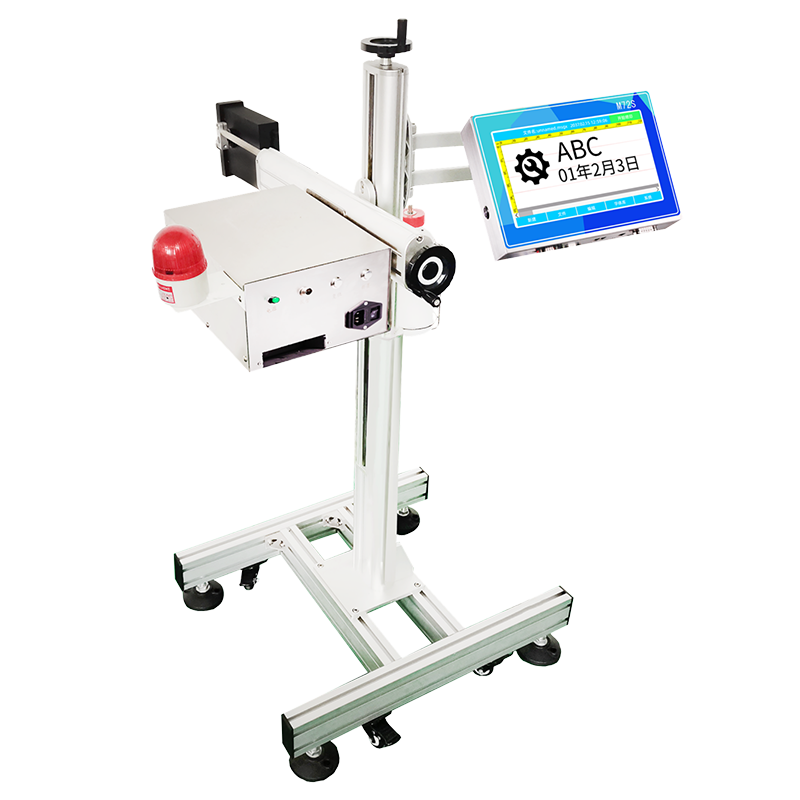

High-Resolution Inkjet Coder

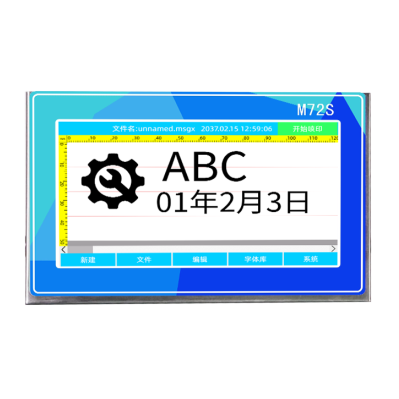

·Ten inch industrial touch screen
·Equipped with heating function to meet the printing needs of UV ink
·Equipped with waste ink recycling function, environmentally friendly and pollution-free
·Up to 200m/min
·All industrial grade hardware with strong anti-interference ability and high reliability
·Intelligent cleaning technology to prevent ink from drying up and blocking the spray hole

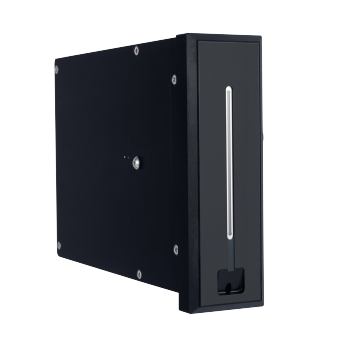

·Industrial grade printing engine ensures stable nozzle operation
·Good compatibility, easy installation, and can be integrated into various production lines
High-Resolution Inkjet Coder Product Parameters
| Inkjet technology | Fully imported piezoelectric nozzle |
| Operating system | Embedded LINUX system |
| Printing accuracy | 180dpi |
| High printing height | 1-71mm |
| Spray distance | 2-15mm |
| Spray printing font | High resolution inkjet fonts (i.e. printed fonts), dot matrix fonts |
| Number of printing lines | Any number of rows |
| Information length | 1-3.8米 |
| Spray printing content | Batch number, class, serial number, text, pattern, time and date LOGO、 Counting, one-dimensional code, two-dimensional code |
| Printing speed | 1-200m/min，The printing speed does not change with an increase in the number of lines |
| Printing direction | The nozzle can rotate in the forward, upward, and downward directions |
| Memory capacity | Large capacity storage and expandable storage space |
| Scope of application | Can be spray printed on surfaces such as metal, plastic, wooden boards, aluminum platinum, cardboard boxes, and building materials |
| Communication interface | It can be directly connected to a computer through a serial port or USB interface, making it very convenient to transfer trademark patterns and change the printing fonts in the inkjet printer font library according to your special requirements. |
| Applicable ink | Using fast drying ink or water-based ink, no additives, no pollution, no need for external air source or built-in air pump |
| Ink color | Black, white, red |
| Supported languages | Chinese, English, support language import |
| fuselage | Stainless steel |
| Power parameters | AC220V (Must be effectively grounded) |
| Body power consumption | 20w |
| Usage environment | Temperature 0 ° C-50 ° C Humidity 10% RH-90% RH |
