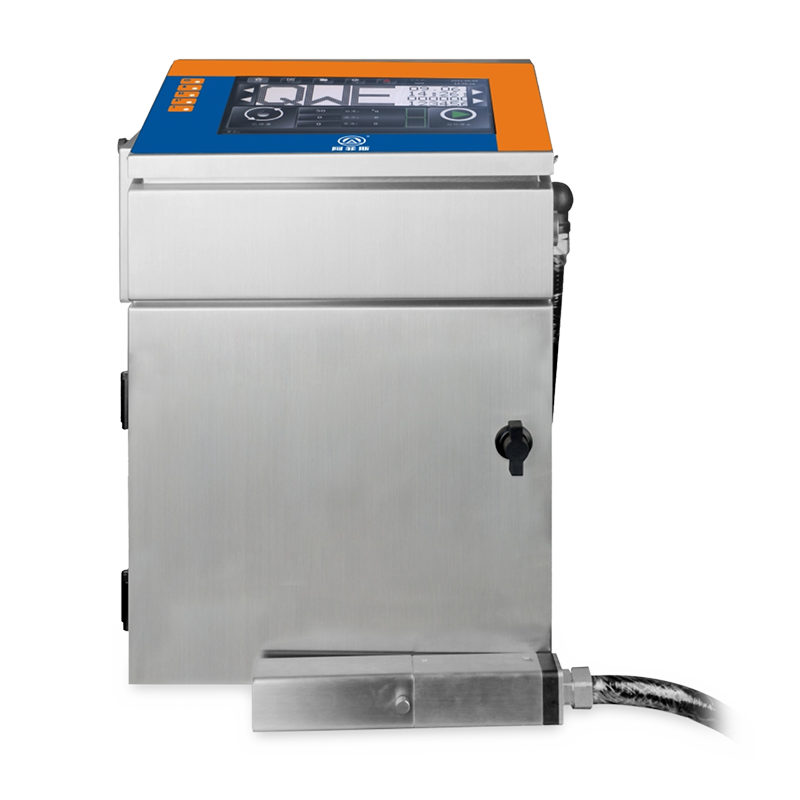

F9500 Color Inkjet Coder
Color touch screen
Adopting a 10.1-inch color LCD touch screen for easier operation
IP55 protection
The entire body is designed with stainless steel IP55 grade.
Ink cartridge
Real time monitoring of consumables usage status and timely reminders to customers to replace consumables.
Automatic cleaning
The automatic cleaning function of the power on/off ensures the cleanliness of the nozzle and recycler, as well as smooth ink lines when turned on again.
HxW dots
5X5 7X5 9X7 12x12 16X16 24X24 32X32。
Printing speed
The distance between the nozzle and the surface of the printed object can reach 30mm.
Input voltage
220vac±10%
Ink line detection
The ink line detection function of the recycler ensures automatic shutdown in case of ink line failure.
Network access
It can achieve fast processing between machines and computers.
Ink Road System
Modular ink path design reduces pipelines and joints, saving more consumables.
Number of printing lines
1-4 rows (7 * 5 dot matrix).

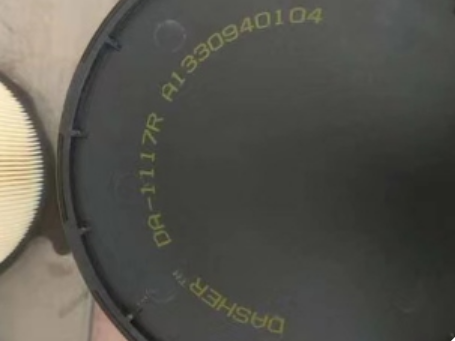

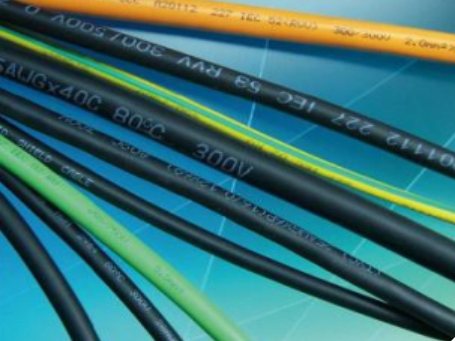

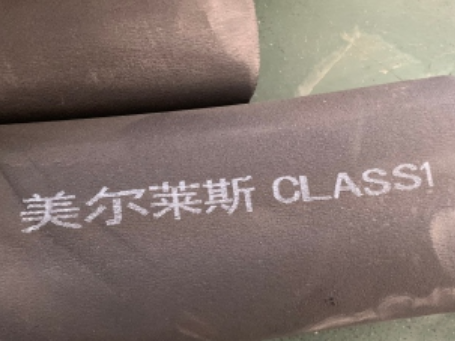

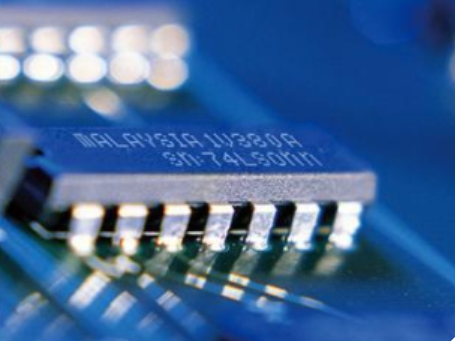

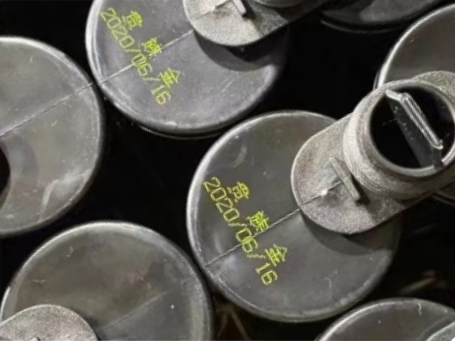

Spray printing content
Chinese, English, numbers and other combinations can be used to print production dates, batch numbers, logos, patterns, expiration dates, Julian days, shifts, barcodes, garbled codes and other information.

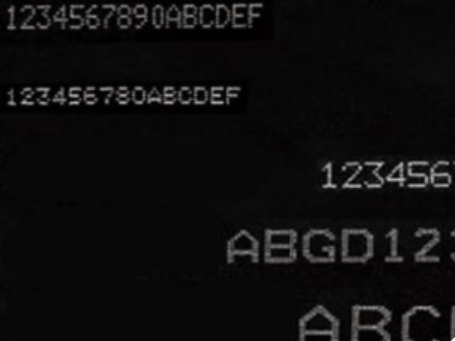

font height
1.8mm-15mm。
Equipment environment requirements
Environmental temperature: -5 ℃~45 ℃
Environmental humidity: 30-95% RH
Specifications
Body size: 325mmX280mmX470mm
Nozzle size: 230mmX44mmX41mm
Standard 3m nozzle connection cable
F9500 Color Inkjet Coder Product Parameters
Intelligent coding high-definition large screen
The dual nozzle inkjet printer adopts a 10.1-inch LVDS high-definition large screen, a quad core processor, and a multi language keyboard that can be freely switched. In addition to dot matrix fonts, it particularly supports vector fonts to create a "what you see is what you get" inkjet printing effect. The company has a measurement and control system and nozzle heating function to ensure stable performance of the inkjet printer, meet your production requirements, and improve the quality of your products.
