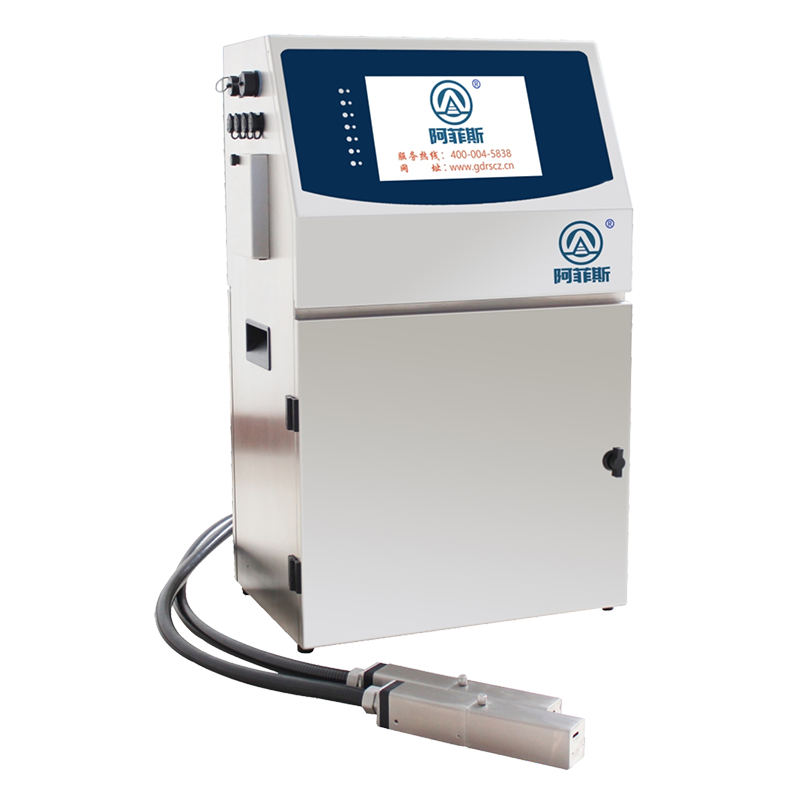

F9500S Dual nozzle Industrial Inkjet Coder
Color touch screen
Adopting a 10.1-inch LVDS high-definition large screen based on QT technology, the simple interface design style makes user operation as convenient as operating an iPad
Hardware configuration
Equipped with a 4-core processor, the CPU clock speed reaches 1.4GHz, and comes standard with 1GB of memory and 8GB of storage space
IP55 Protection Standard Protocol
The entire body is designed with stainless steel IP55 grade
Standard Protocol
Adopting the MODBUS industrial standard protocol for easy integration with other industrial equipment.
Consumables
Real time monitoring of consumables usage status, timely reminding customers to replace consumables
Ink Road System
Modular ink path design reduces pipelines and joints, improves stability, and saves consumables
Automatic cleaning
Automatic cleaning function for power on/off, ensuring the cleaning of nozzles and recyclers and smooth ink lines when restarted
Spray printing content

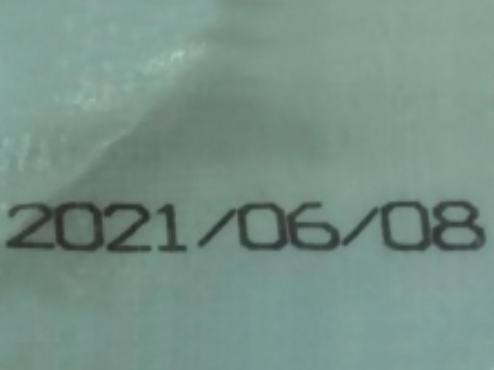

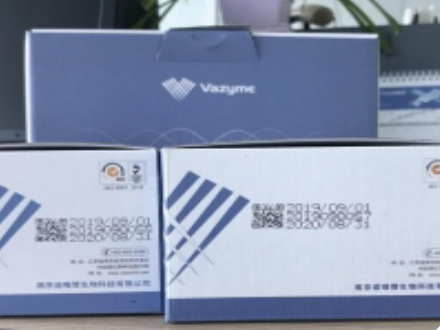

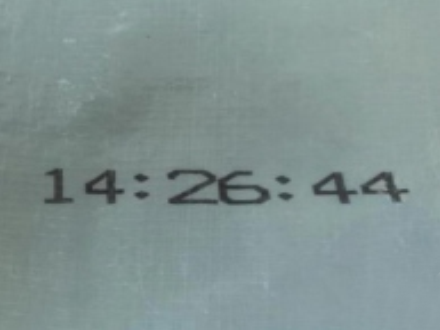

Can use a combination of Chinese, English, numbers, etc. to print production dates, batch numbers, micro labels, patterns, expiration dates, Julian days, shifts, barcodes, garbled codes, and other information
HxW dots
5x5、7x5、9x7、12x10、16x12、24x18、32x24
Ink line detection
The ink line detection function of the recycler ensures automatic shutdown in case of ink line failure.
Printing speed
285 meters/minute (5x5 dot matrix)
Number of printing lines
1-4 rows (7x5 dot matrix), 1-5 rows (5x5 dot matrix)
Printing distance
The distance between the printing and the surface of the printed object can reach 30mm
Font height
1.8mm-15mm
Input voltage
220vac±10%
Equipment environment requirements
Environmental temperature: -5 ° C~45 ° C
Environmental humidity: 30-95% RH
Specifications
Body size: 762mmX465mmX323mm

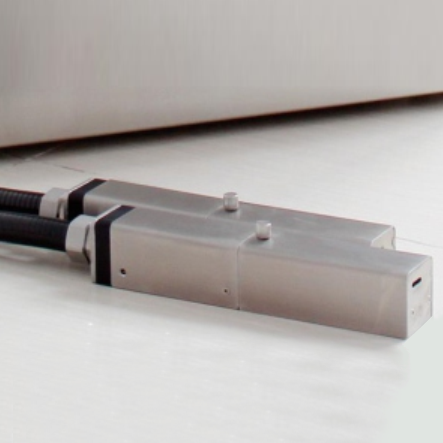

Nozzle size: 230mmX44mmX41mm
Standard 3m nozzle connection cable
F9500S Dual nozzle Industrial Inkjet Coder Product Parameters
Intelligent coding high-definition large screen
The dual nozzle inkjet printer adopts a 10.1-inch LVDS high-definition large screen, a quad core processor, and a multi language keyboard that can be freely switched. In addition to dot matrix fonts, it particularly supports vector fonts to create a "what you see is what you get" inkjet printing effect. At the same time, it has a measurement and control system and nozzle heating function to ensure stable performance of the inkjet printer, meet your production requirements, and improve the quality of your products.
