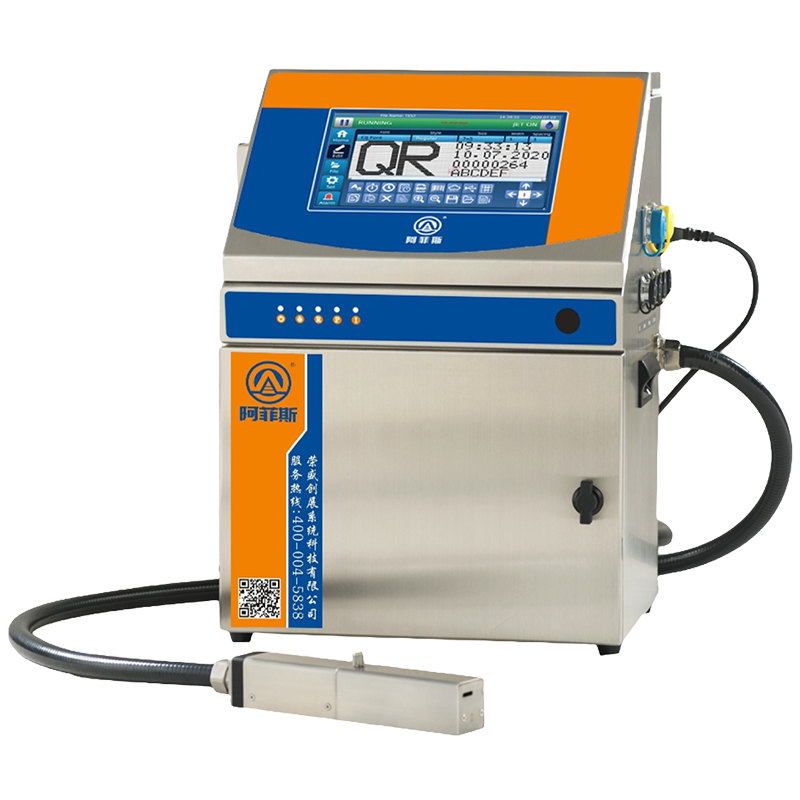

F8600 Smart Inkjet Coder
Chinese input
Support multi language display, multi language keyboard can easily input and print multiple languages
Vector font editing
Support vector and dot matrix fonts, with a wider variety of font types; Support dynamic information printing with various fonts
Multiple printing methods
Can print various information such as one-dimensional/two-dimensional codes, shifts, barcodes, images, counters, garbled codes, etc

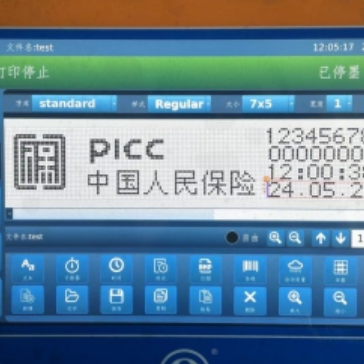

10.1-inch touch screen
10.1-inch color LCD touch screen, brand new touch screen interface
Flexible team setup
Flexible setting of team quantity and time, supporting multiple team information
Icon guidance
Intuitive icon guidance operation makes coding easier
Aviation connector
Equipped with standard aviation plugs, high reliability
Intelligent ink
The nozzle heating function can automatically adjust the printing parameters
F8600 Smart Inkjet Coder Product Parameters
Color touch screen
Adopting a 10.1-inch LVDS high-definition large screen based on QT technology, the new interface design style makes user operation simpler.
Software upgrade
Simple and convenient remote upgrade function to meet the expansion of various new features for users in the future.
Smart Cartridges
Intelligent design of consumables, which can detect the usage status of consumables in real time, display real-time and clear operation information such as liquid level and printing data.
Multiple languages
Support multi language display, multi language keyboard, convenient input and printing of multiple languages such as Arabic, Russian, Japanese, etc.
HxW dots
5X5,5X7,7X9,10x12,12X16, 18X24,24X32
Printing speed
The highest speed is 285 meters per minute.
Printing distance
The maximum distance between the nozzle and the surface of the printed object is 30mm.
Input voltage
220vac士10%
Hardware configuration
Equipped with a 4-core processor, the CPU clock speed reaches 1.4GHz, and comes standard with 1GB of memory and 8GB of storage space.
Standard Protocol
Adopting the MODBUS industrial standard protocol makes it more convenient to interface with other industrial equipment.
New Ink Road
The intelligent ink cartridge system ensures a more sealed ink and solvent delivery process and guarantees the use of the correct ink and solvent.
Number of printing lines
1-4 rows (7x5 grid), 1-5 rows (5 * 5 grid).
Spray printing content
Support dynamic printing of over 140 commonly used one-dimensional and two-dimensional codes, printing production dates, batch numbers, micro labels, patterns, dates, Julian days, shifts, barcodes, garbled codes, and other information in combinations of Chinese, English, and numbers.
Font height
1.8mm-15mm.
Equipment environment requirements
Environmental temperature: -5 ° C~45 ° C
Environmental humidity: 30-95% RH
Specifications
Body size: 370mmX310mm X510mm

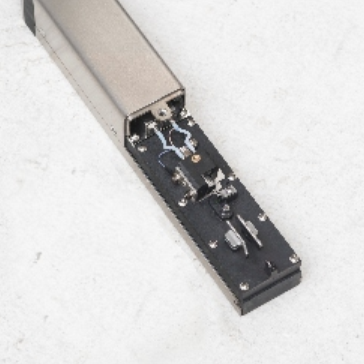

Nozzle size: 230mmX44mmX41mm
Standard 3m nozzle connection cable
