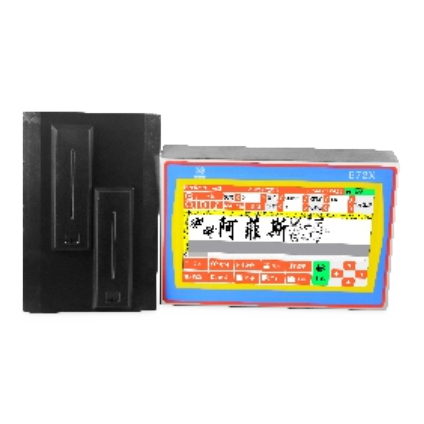

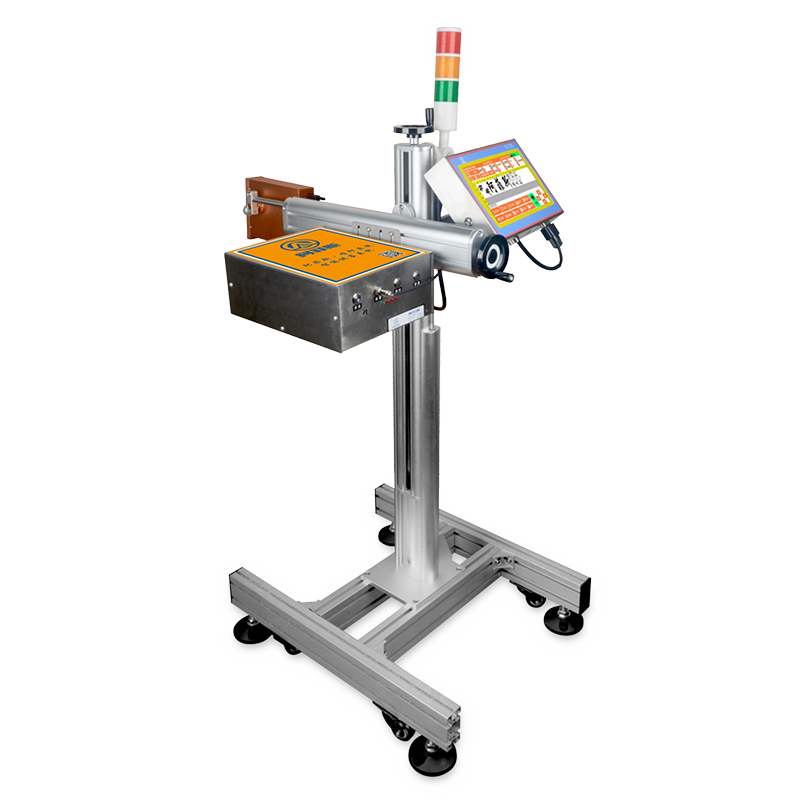

E72X Large width Industrial Inkjet Coder

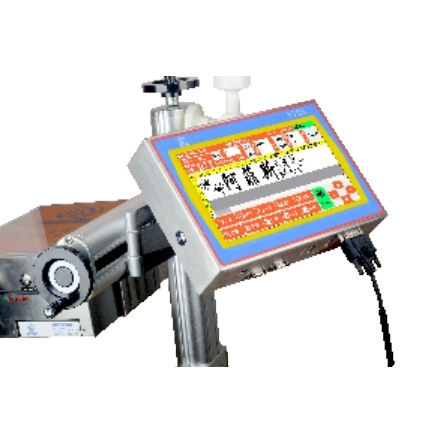

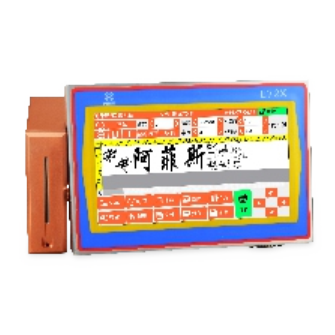

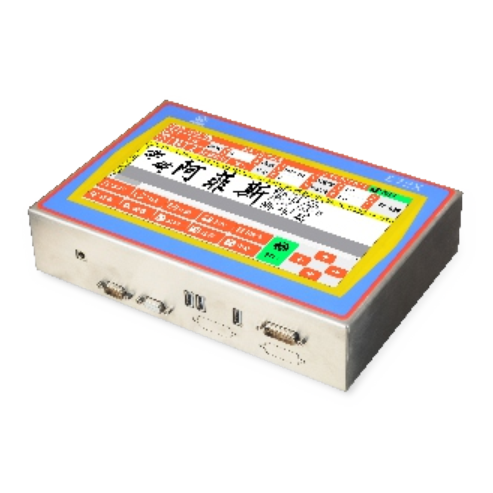

·The E72x inkjet printer adopts a modular design, and the host adopts a 10.1-inch color high-definition LCD touch screen.
·The embedded LINUX system is easy to operate, learn and understand, with complete functions, and can print information as seen.
·The industrial grade pressure nozzle has a long service life, is not prone to clogging, and has stable performance.
·No need to add solvents, no pollution, no need for external air source or built-in air pump.

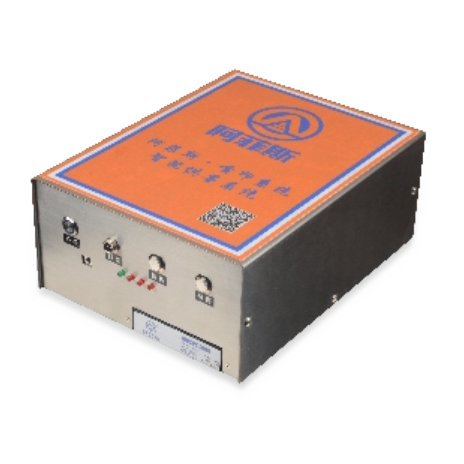

·Fully automatic ink supply system, one click flushing nozzle using intelligent ink supply system, liquid level shortage alarm, automatic ink supply, no need for manual ink squeezing.
·By using imported environmentally friendly ink, various variable information can be printed on different materials.
·Application industries: Building materials, electronics, cables, pipes, hardware, food, beverages, pharmaceuticals, chemicals, and other industries.
·Open communication protocol, supports computer PC end, supports non-standard customization, and can be developed again.
E72X Large width Industrial Inkjet Coder Product Parameters
| Nozzle type | Piezoelectric |
| Operating system | Embedded LINUX system |
| Printing accuracy | 180dpi |
| Printing height | Single head 72mm, double head splicing 140mm |
| Number of printing lines | Unlimited number of rows (maximum nozzle height range, arbitrary layout) |
| Printing speed | 1-80m/min，The printing speed does not change with an increase in the number of lines |
| Nozzle content | Text, images, one-dimensional codes, two-dimensional codes, databases, etc |
| Printing direction | 360 ° rotary printing |
| External interface | Network port, 232 serial port, USB interface |
| Ink type | Oil based, slow drying, UV curable ink |
| Ink color | Black, blue, red, white, invisible ink, etc |
| Power requirements | AC220V (Must be effectively grounded) |
| Nozzle cleaning | One click automatic cleaning |
| Body power consumption | 20W |
| Usage environment | Temperature 0 ° C-50 ° C Humidity 10% RH-90% RH |
